docker学习

清华镜像源
yum install -y yum-utils
sudo yum-config-manager --add-repo https://mirrors.tuna.tsinghua.edu.cn/docker-ce/linux/centos/docker-ce.repo
sudo sed -i 's|https://download.docker.com|https://mirrors.tuna.tsinghua.edu.cn/docker-ce|g' /etc/yum.repos.d/docker-ce.repo

安装docker
yum install docker-ce docker-ce-cli containerd.io
systemctl enable --now docker

安装命令补全
yum install bash-completion -y

执行容器中的终端
docker exec -it 名称 bash
docker run -d centos
docker run -it -d nginx

docker ps
-a 查看所有容器，包含退出
-q 列出所有的容器ID

docker rm -f 删除容器

映射端口、目录
docker run -d --name web -p 88:80 -v /opt/wwwroot/:/usr/share/nginx/html nginx

FROM 构建新镜像是基于哪个镜像
LABEL 标签
RUN 构建镜像时运行的Shell命令
COPY 拷贝文件或目录到镜像中
ADD 解压压缩包并拷贝
ENV 设置环境变量
USER 为RUN、CMD和ENTRYPOINT执行命令指定运行用户
EXPOSE 声明容器运行的服务端口
WORKDIR 为RUN、CMD、ENTRYPOINT、COPY和ADD设置工作目录
CMD 运行容器时默认执行，如果有多个CMD指令，最后一个生效

docker编译

docker build -t nginx:v1 .

nginx镜像

FROM centos:7
RUN curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo && \
        yum install epel-release -y && \
        yum install nginx -y

CMD ["nginx","-g","daemon off;"]

centos底包

FROM centos:7
FROM centos:8
FROM almalinux:latest
FROM almalinux/8-minimal

tomcat镜像
手动

docker run -it -d alma:tnt
docker exec -it 名称 bash
dnf install java-openjdk -y
dnf clean all
rm -rf /var/cache/dnf/*
curl -O https://mirrors.huaweicloud.com/apache/tomcat/tomcat-10/v10.1.33/bin/apache-tomcat-10.1.33.tar.gz
tar xvzf apache-tomcat-10.1.33.tar.gz
export TOMCAT_HOME=/apache-tomcat-10.1.33/
/apache-tomcat-10.1.33/bin/catalina.sh  run

创建dockerfile

FROM almalinux:latest
RUN  dnf install java-openjdk -y &&\
    dnf install java-openjdk -y &&\
    dnf clean all &&\
    rm -rf /var/cache/dnf/*
RUN curl -O https://mirrors.huaweicloud.com/apache/tomcat/tomcat-10/v10.1.33/bin/apache-tomcat-10.1.33.tar.gz &&\
    tar xvzf apache-tomcat-10.1.33.tar.gz &&\
    export TOMCAT_HOME=/apache-tomcat-10.1.33/ &&\
    rm -rf /apache-tomcat-10.1.33.tar.gz
EXPOSE 8080
CMD ["/apache-tomcat-10.1.33/bin/catalina.sh","run"]

编译运行

docker build -t tomcat:tnt .
docker run -d --name tomcattnt -p 8080:8080 tomcat:tnt

teleport堡垒机镜像
手动

docker run -it -d centos:7
docker exec -it 名称 bash
curl -O https://tp4a.com/static/download/teleport-server-linux-x64-3.6.4-b3.tar.gz
tar -zxvf teleport-server-linux-x64-3.6.4-b3.tar.gz
rm -rf /teleport-server-linux-x64-3.6.4-b3.tar.gz
mkdir /usr/local/teleport/data/assist -p
cd /usr/local/teleport/data/assist
curl -O https://tp4a.com/static/download/teleport-assist-windows-3.6.3.exe
curl -O https://tp4a.com/static/download/teleport-assist-macos-3.6.3.dmg
cd teleport-server-linux-x64-3.6.4-b3
sh -c '/bin/echo -e "\n" | sh ./setup.sh'
sed -i 's/exit $shell_ret/\/usr\/bin\/tail -f \/usr\/local\/teleport\/data\/log\/tpcore.log/g' /usr/local/teleport/start.sh

dockerfile文件 teleportV3

FROM centos:7
RUN curl -O https://tp4a.com/static/download/teleport-server-linux-x64-3.6.4-b3.tar.gz &&\
        tar -zxvf teleport-server-linux-x64-3.6.4-b3.tar.gz &&\
        rm -rf /teleport-server-linux-x64-3.6.4-b3.tar.gz &&\
        mkdir /usr/local/teleport/data/assist -p &&\
        cd /usr/local/teleport/data/assist &&\
        curl -O https://tp4a.com/static/download/teleport-assist-windows-3.6.3.exe &&\
        curl -O https://tp4a.com/static/download/teleport-assist-macos-3.6.3.dmg &&\
        cd /teleport-server-linux-x64-3.6.4-b3 &&\
        sh -c '/bin/echo -e "\n" | sh ./setup.sh' &&\
        sed -i 's/exit $shell_ret/\/usr\/bin\/tail -f \/usr\/local\/teleport\/data\/log\/tpcore.log/g' /usr/local/teleport/start.sh &&\
    rm -rf /teleport-server-linux-x64-3.6.4-b3
EXPOSE 7190 52089 52189 52389
CMD ["/etc/init.d/teleport","start"]

编译运行

docker build -t teleportv3:tnt .
docker run -d --name teleportv3 -p 7190:7190 -p 52089:52089 -p 52189:52189 -p 52389:52389  teleportv3:tnt

安装harbor
下载解压
harbor-online-installer-v2.11.2.tgz

进入目录
cd /harbor
创建配置
cp harbor.yml.tmpl harbor.yml

hostname:
http:
port:

预配置

./prepare

部署

./install.sh

查看状态

docker-compose ps

关闭

docker-compose stop

启动

docker-compose start

后台运行

docker-compose up -d

删除

harbor docker-compose down

默认账号密码

admin
Harbor12345

docker主机添加Harbor仓库

{
        "registry-mirrors": [
                "https://docker.1panel.live"
        ],
        "insecure-registries" : ["10.100.0.1"]
}

查看docker配置是否成功

docker info

登录harbor

docker login IP

修改镜像tag

docker tag teleportv3:tnt 10.100.0.2/library/teleportv3:tnt

推送

docker push 10.100.0.2/library/teleportv3:tnt

拉取镜像

10.100.0.2/library/teleportv3:tnt

K8S快速部署

1、主机规划

testk8s-master    192.168.4.10
testk8s-node1    192.168.4.11
testk8s-node2    192.168.4.12

系统配置为4C8G200G，centos7系统，分区为/boot、/，无SWAP分区

2、操作系统初始化-所有节点
关闭防火墙

systemctl stop firewalld
systemctl disable firewalld

关闭selinux

sed -i 's/enforcing/disabled/' /etc/selinux/config
setenforce 0

关闭swap

swapoff -a  # 临时
sed -ri 's/.*swap.*/#&/' /etc/fstab    # 永久

在master节点添加hosts

cat >> /etc/hosts << EOF
192.168.4.10 testk8s-master
192.168.4.11 testk8s-node1
192.168.4.12 testk8s-node2
EOF

将桥接的IPv4流量传递到iptables的链

cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system  # 生效

时间同步

vi /etc/chrony.conf
增加 server 114.115.116.117 iburst
systemctl restart chronyd
立即同步时间
chronyc -a makestep
查看同步状态
chronyc tracking

3、安装docker
配置阿里云、清华镜像源

curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo
yum install -y yum-utils
sudo yum-config-manager --add-repo https://mirrors.tuna.tsinghua.edu.cn/docker-ce/linux/centos/docker-ce.repo
sudo sed -i 's|https://download.docker.com|https://mirrors.tuna.tsinghua.edu.cn/docker-ce|g' /etc/yum.repos.d/docker-ce.repo
yum clean all
yum makecache
yum install bash-completion -y
yum install docker-ce -y --nogpgcheck
systemctl enable docker && systemctl start docker
systemctl restart docker
docker info

4、安装vmtools

yum install open-vm-tools -y

5、做快照
防止操作错误

6、安装kubeadm，kubelet和kubectl
配置镜像加速
镜像源列表https://www.cnblogs.com/gnuorg/p/18570325

cat > /etc/docker/daemon.json << EOF
{
  "registry-mirrors": ["https://docker.1panel.live"]
}
EOF

 systemctl restart docker

cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

指定版本号

yum install -y kubelet-1.20.0 kubeadm-1.20.0 kubectl-1.20.0
systemctl enable kubelet

7、部署Kubernetes Master
在192.168.4.10（Master）执行。

kubeadm init \
  --apiserver-advertise-address=192.168.4.10 \
  --image-repository registry.aliyuncs.com/google_containers \
  --kubernetes-version v1.20.0 \
  --service-cidr=10.96.0.0/12 \
  --pod-network-cidr=10.244.0.0/16 \
  --ignore-preflight-errors=all

解释
--apiserver-advertise-address 集群通告地址
--image-repository 由于默认拉取镜像地址k8s.gcr.io国内无法访问，这里指定阿里云镜像仓库地址
--kubernetes-version K8s版本，与上面安装的一致
--service-cidr 集群内部虚拟网络，Pod统一访问入口
--pod-network-cidr Pod网络，与下面部署的CNI网络组件yaml中保持一致
--ignore-preflight-errors=all 忽略错误
初始化完成后，最后会输出一个join命令，先记住，下面用。

执行后返回

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.4.10:6443 --token oweerb.nonsh3zl5a8no0od \
    --discovery-token-ca-cert-hash sha256:279352b82d65dd6bd470ea1b8c54542215696402a0d6bd8a20e53102f39f8a21

拷贝kubectl使用的连接k8s认证文件到默认路径

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

查看工作节点

kubectl get nodes
NAME             STATUS     ROLES                  AGE    VERSION
testk8s-master   NotReady   control-plane,master   104s   v1.20.0

8、加入K8S node
在Node节点执行
192.168.4.11
192.168.4.12

向集群添加新节点，执行在kubeadm init输出的kubeadm join命令

kubeadm join 192.168.4.10:6443 --token oweerb.nonsh3zl5a8no0od \
    --discovery-token-ca-cert-hash sha256:279352b82d65dd6bd470ea1b8c54542215696402a0d6bd8a20e53102f39f8a21

默认token有效期为24小时，当过期之后，该token就不可用了。这时就需要重新创建token，可以直接使用命令快捷生成

kubeadm token create --print-join-command

查看工作节点

kubectl get nodes
NAME             STATUS     ROLES                  AGE     VERSION
testk8s-master   NotReady   control-plane,master   3m42s   v1.20.0
testk8s-node1    NotReady   <none>                 19s     v1.20.0
testk8s-node2    NotReady   <none>                 16s     v1.20.0

9、部署容器网络（CNI）
Calico是一个纯三层的数据中心网络方案，是目前Kubernetes主流的网络方案。

下载YAML

curl https://docs.projectcalico.org/v3.20/manifests/calico.yaml -O

下载完后还需要修改里面定义Pod网络（CALICO_IPV4POOL_CIDR），与前面kubeadm init的 --pod-network-cidr指定的一样。

# The default IPv4 pool to create on startup if none exists. Pod IPs will be
            # chosen from this range. Changing this value after installation will have
            # no effect. This should fall within `--cluster-cidr`.
            - name: CALICO_IPV4POOL_CIDR
              value: "10.244.0.0/16"

修改完后文件后，部署：

kubectl apply -f calico.yaml
kubectl get pods -n kube-system

等Calico Pod都Running，节点也会准备就绪。
注：以后所有yaml文件都只在Master节点执行！

安装目录：/etc/kubernetes/
组件配置文件目录：/etc/kubernetes/manifests/

节点运行情况

 kubectl get pods -n kube-system
NAME                                       READY   STATUS     RESTARTS   AGE
calico-kube-controllers-577f77cb5c-jrcfs   0/1     Pending    0          5s
calico-node-fznrr                          0/1     Init:0/3   0          6s
calico-node-nrrwj                          0/1     Init:0/3   0          6s
calico-node-x7hds                          0/1     Init:0/3   0          6s
coredns-7f89b7bc75-6lr2s                   0/1     Pending    0          7m18s
coredns-7f89b7bc75-kwq9c                   0/1     Pending    0          7m18s
etcd-testk8s-master                        1/1     Running    0          7m26s
kube-apiserver-testk8s-master              1/1     Running    0          7m26s
kube-controller-manager-testk8s-master     1/1     Running    0          7m26s
kube-proxy-6pbwh                           1/1     Running    0          4m9s
kube-proxy-btgsz                           1/1     Running    0          4m12s
kube-proxy-cdfxc                           1/1     Running    0          7m18s
kube-scheduler-testk8s-master              1/1     Running    0          7m26s

会出现的一种情况是镜像下载失败

calico-node-fznrr                          0/1     Init:ImagePullBackOff   0          5m32s
calico-node-nrrwj                          0/1     Init:ImagePullBackOff   0          5m32s
calico-node-x7hds                          0/1     Init:ImagePullBackOff   0          5m32s

查看失败原因

 kubectl describe po calico-node-fznrr -n kube-system
  Warning  Failed     2m11s                 kubelet            Failed to pull image "docker.io/calico/pod2daemon-flexvol:v3.20.6": rpc error: code = Unknown desc = Error response from daemon: Get "https://registry-1.docker.io/v2/": net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)
  Warning  Failed     2m11s                 kubelet            Error: ErrImagePull
  Normal   BackOff    2m11s                 kubelet            Back-off pulling image "docker.io/calico/pod2daemon-flexvol:v3.20.6"
  Warning  Failed     2m11s                 kubelet            Error: ImagePullBackOff
  Normal   Pulling    116s (x2 over 5m31s)  kubelet            Pulling image "docker.io/calico/pod2daemon-flexvol:v3.20.6"

通过镜像站点下载 https://docker.aityp.com/image/docker.io/calico/pod2daemon-flexvol:v3.20.6

docker pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/pod2daemon-flexvol:v3.20.6
docker tag  swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/pod2daemon-flexvol:v3.20.6  docker.io/calico/pod2daemon-flexvol:v3.20.6

等待自动修复完成

calico-kube-controllers-577f77cb5c-jrcfs   0/1     ContainerCreating   0          22m
calico-node-fznrr                          0/1     Running             0          22m
calico-node-nrrwj                          1/1     Running             0          22m
calico-node-x7hds                          1/1     Running             0          22m

有时发生错误，重启k8s也能解决

systemctl restart kubelet

创建pod测试

kubectl create deployment nginx --image=nginx

查看pod状态

kubectl get pod

查看pod状态带节点和IP

kubectl get pod -o wide
NAME                     READY   STATUS    RESTARTS   AGE   IP             NODE            NOMINATED NODE   READINESS GATES
nginx-6799fc88d8-rqb82   1/1     Running   0          14m   10.244.236.3   testk8s-node1   <none>           <none>

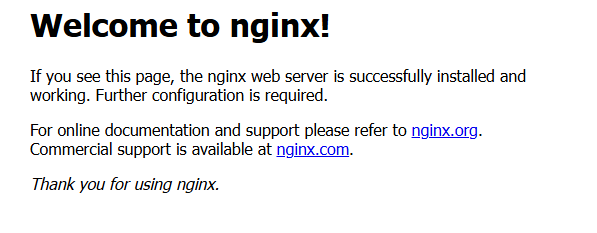

测试nginx

curl 10.244.236.3

<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>

创建外部访问

kubectl expose deployment nginx --port=80 --target-port=80 --type=NodePort

查看外部端口 范围 30000以上

kubectl get pod,svc

NAME                         READY   STATUS    RESTARTS   AGE
pod/nginx-6799fc88d8-rqb82   1/1     Running   0          15m

NAME                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
service/kubernetes   ClusterIP   10.96.0.1        <none>        443/TCP        46m
service/nginx        NodePort    10.101.228.228   <none>        80:32507/TCP   15s

访问地址为
http://192.168.4.11:32507/ http://192.168.4.12:32507/
即Pod任意节点IP，组合service映射的端口

10、部署dashboard
YAML下载地址

curl https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.3/aio/deploy/recommended.yaml -O

修改yaml，增加nodePort: 30001 type: NodePort

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30001
  selector:
    k8s-app: kubernetes-dashboard

部署dashboard

kubectl apply -f recommended.yaml

查看状态

kubectl get pods -n kubernetes-dashboard

创建service account并绑定默认cluster-admin管理员集群角色：

创建用户

kubectl create serviceaccount dashboard-admin -n kube-system

用户授权

kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin

获取用户Token

kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret | awk '/dashboard-admin/ {print $1}')

Name:         dashboard-admin-token-sqtsm
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: dashboard-admin
              kubernetes.io/service-account.uid: 77ad4c5d-e4e0-4dc9-b014-7f679acf5aff

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1066 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6InY0U0pqNDh2M0ZGMVdMTGdxSnNBcmxMaVFGVE9nMC1tMnhxQzFfZjF3aEUifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tc3F0c20iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiNzdhZDRjNWQtZTRlMC00ZGM5LWIwMTQtN2Y2NzlhY2Y1YWZmIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.fwivtHsitw0ABTfb96HqIJ6N9SL23eiZtIjniqB1qRYIODkGJkOXKGpUmEXPRwR-pQr4glk1KDP9dB2xidET9IhZ-3iKt_5K8xb9K3aELG9yOzzH0Xmi88SaY6A6ZrABaCjjTcp80d-5FgQhRB6ruMLnD1N7vftYk1Sf37HvZ_bKApq1C6uebKnMd0M2EcPckjepvSXmD6fdsosTAJrTYeEpcFCjR6IS5R9bnrN7ADwFZHu-kEekhhV7g888REdhnbSkAvzE9OYbIf7uVgTkh6C_ZhJEzODViHS_RDkiEbZSqs0Q53h50CgL8tj3CBrkV9FvO7SoKVCtvTkYZyPfcQ

访问地址：https://NodeIP:30001
任何节点都可以访问https://192.168.4.10:30001/ https://192.168.4.11:30001/

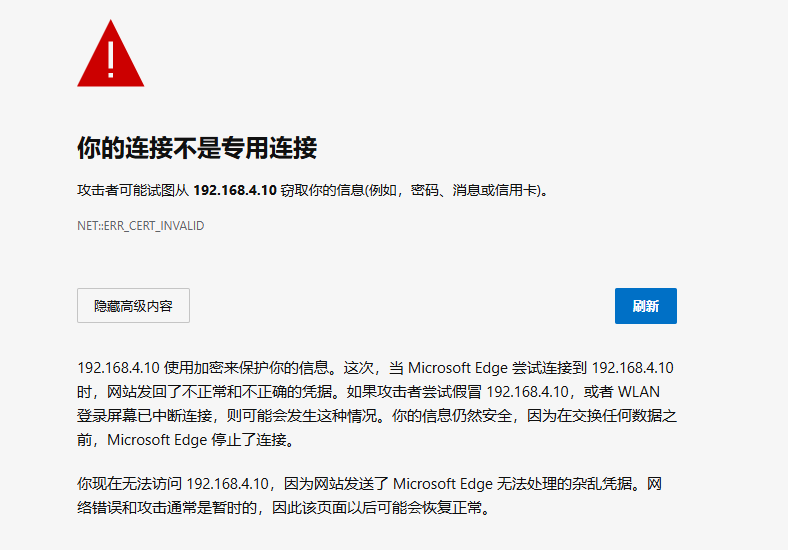

EDGE访问出现你的连接不是专用链接，没有继续访问按钮时

解决办法
保持焦点在页面内，鼠标在页面空白处点击（不选中任何按钮），直接输入“thisisunsafe”，输完后按回车键，就可以正常访问网页。
这里要注意的是，输入的时候页面时不会有任何反应的，也不会显示输入的字符，是正常现象。输入完毕后点回车即可。

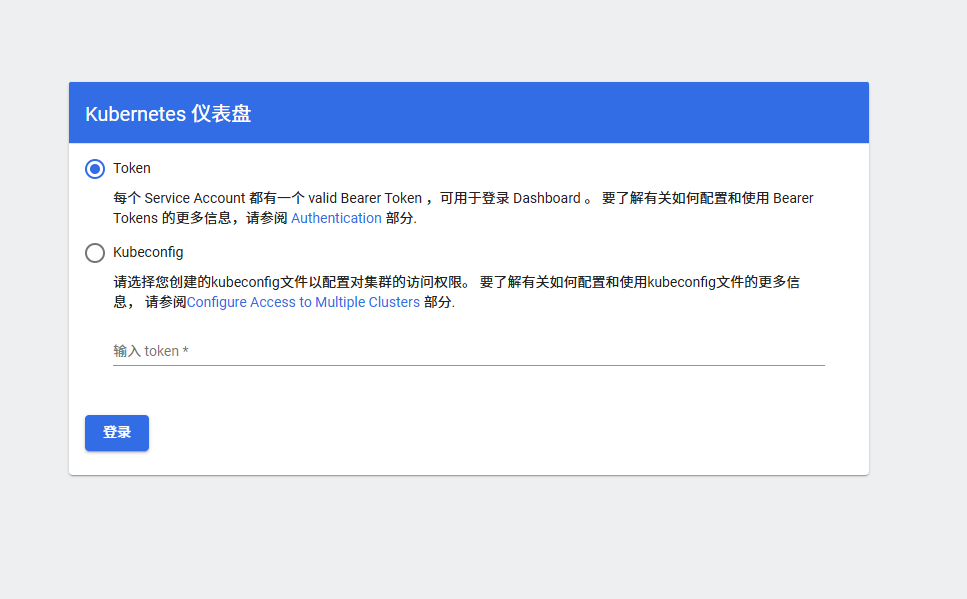

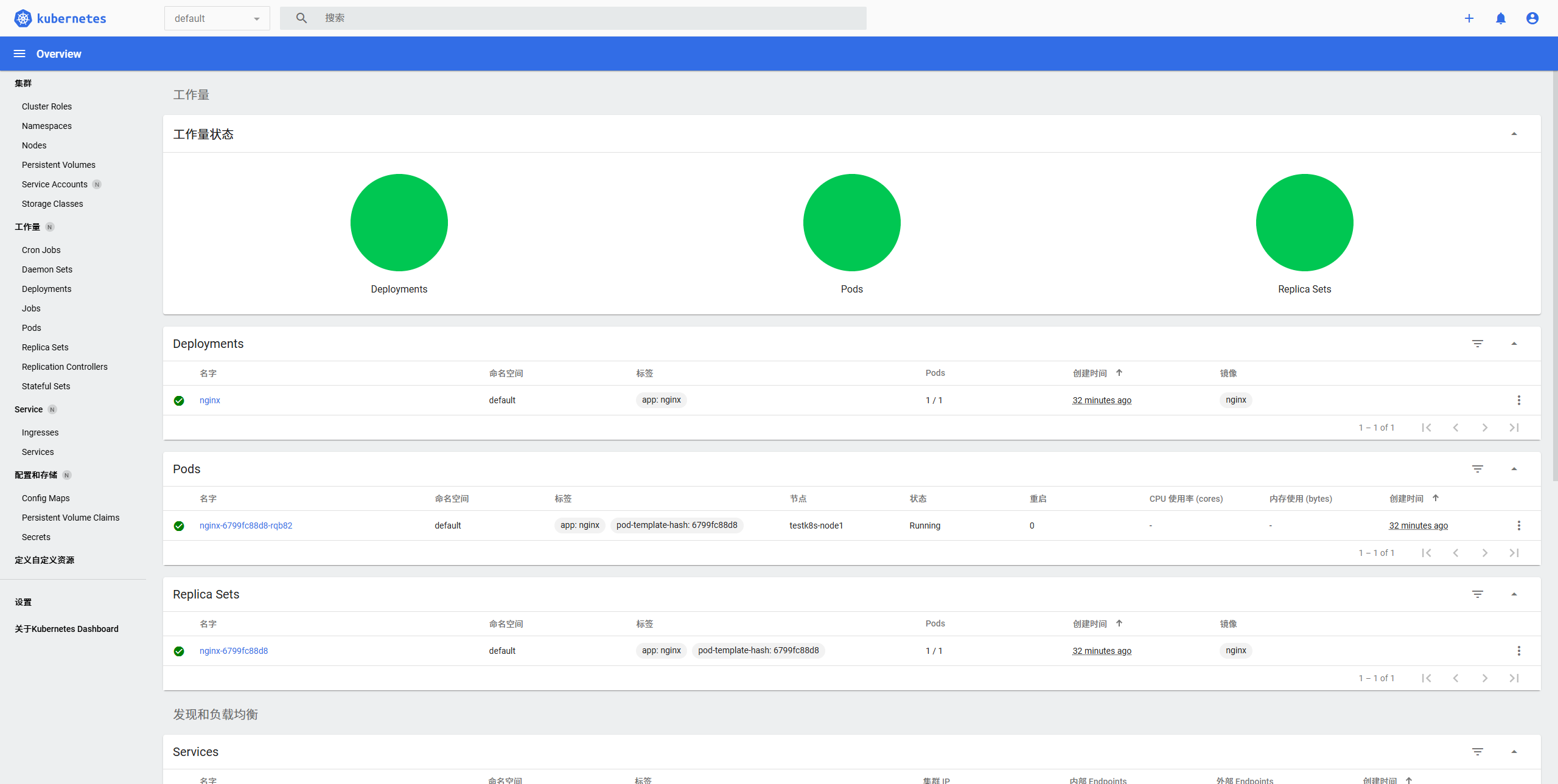

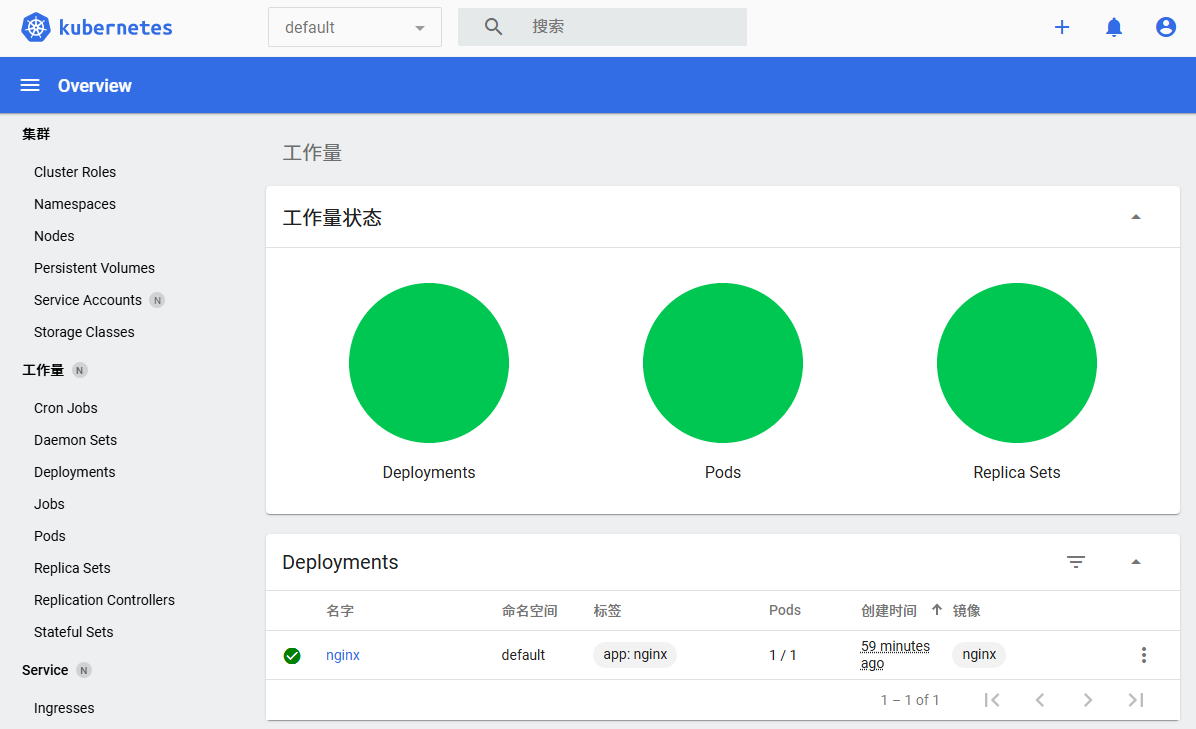

输入Token登录

token:
eyJhbGciOiJSUzI1NiIsImtpZCI6InY0U0pqNDh2M0ZGMVdMTGdxSnNBcmxMaVFGVE9nMC1tMnhxQzFfZjF3aEUifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tc3F0c20iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiNzdhZDRjNWQtZTRlMC00ZGM5LWIwMTQtN2Y2NzlhY2Y1YWZmIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.fwivtHsitw0ABTfb96HqIJ6N9SL23eiZtIjniqB1qRYIODkGJkOXKGpUmEXPRwR-pQr4glk1KDP9dB2xidET9IhZ-3iKt_5K8xb9K3aELG9yOzzH0Xmi88SaY6A6ZrABaCjjTcp80d-5FgQhRB6ruMLnD1N7vftYk1Sf37HvZ_bKApq1C6uebKnMd0M2EcPckjepvSXmD6fdsosTAJrTYeEpcFCjR6IS5R9bnrN7ADwFZHu-kEekhhV7g888REdhnbSkAvzE9OYbIf7uVgTkh6C_ZhJEzODViHS_RDkiEbZSqs0Q53h50CgL8tj3CBrkV9FvO7SoKVCtvTkYZyPfcQ


11、查看日志
查看容器日志

kubectl logs 容器名称 -n kube-system

kubectl get pod
NAME                     READY   STATUS    RESTARTS   AGE
nginx-6799fc88d8-rqb82   1/1     Running   0          37m

kubectl logs nginx-6799fc88d8-rqb82
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh

查看容器事件

kubectl describe pod 容器名称 -n kube-system

kubectl describe pod nginx-6799fc88d8-rqb82
Name:         nginx-6799fc88d8-rqb82
Namespace:    default
Priority:     0
Node:         testk8s-node1/192.168.4.11
Start Time:   Wed, 22 Oct 2025 14:17:29 +0800
Labels:       app=nginx
              pod-template-hash=6799fc88d8

查看calico.yaml所需要的镜像

 grep image calico.yaml

          image: docker.io/calico/cni:v3.20.6
          image: docker.io/calico/cni:v3.20.6
          image: docker.io/calico/pod2daemon-flexvol:v3.20.6
          image: docker.io/calico/node:v3.20.6
          image: docker.io/calico/kube-controllers:v3.20.6

cailco镜像下载失败时解决办法
通过镜像站下载 https://docker.aityp.com/

清空部署环境

kubeadm reset

系统命令补全

 yum install bash-completion -y

扩展学习

docker切换containerd
1、先决条件

节点执行
cat <<EOF | tee /etc/modules-load.d/containerd.conf
overlay
br_netfilter
EOF

modprobe overlay
modprobe br_netfilter

设置内核参数
cat <<EOF | tee /etc/sysctl.d/99-kubernetes-cri.conf
net.bridge.bridge-nf-call-iptables    = 1
net.ipv4.ip_forward                = 1
net.bridge.bridge-nf-call-ip6tables    = 1
EOF

生效内核参数
sysctl --system

2、安装containerd 节点执行
安装依赖包

yum install -y yum-utils device-mapper-persistent-data lvm2

安装docker仓库

更新系统、安装containerd

yum update -y
yum install -y containerd.io

配置containerd

创建配置目录
mkdir -p /etc/containerd
创建默认配置文件
containerd config default | sudo tee /etc/containerd/config.toml

重启containerd

systemctl restart containerd

修改配置文件

vi /etc/containerd/config.toml

sandbox_image = "registry.k8s.io/pause:3.6" 修改为  registry.aliyuncs.com/google_containers/pause:3.2
SystemdCgroup = false 修改为 SystemdCgroup = true
[plugins."io.containerd.grpc.v1.cri".registry.mirrors] 下增加两行
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
          endpoint = ["https://docker.xuanyuan.me/"]

对接kubelet

vi /etc/sysconfig/kubelet

KUBELET_EXTRA_ARGS=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock --cgroup-driver=systemd

停止docker

systemctl stop docker.socket&&systemctl stop docker && systemctl disable docker

3、替换容器引擎
master查看K8S状态

kubectl get node
NAME         STATUS     ROLES                  AGE   VERSION
k8s-master   Ready      control-plane,master   25h   v1.20.0
k8s-node1    NotReady   <none>                 25h   v1.20.0
k8s-node2    Ready      <none>                 25h   v1.20.0

节点重启kubelet

systemctl restart kubelet

稍后master再次查看K8S状态

kubectl get node
NAME         STATUS   ROLES                  AGE   VERSION
k8s-master   Ready    control-plane,master   25h   v1.20.0
k8s-node1    Ready    <none>                 25h   v1.20.0
k8s-node2    Ready    <none>                 25h   v1.20.0

mater查看详细节点信息

kubectl get node -o wide
NAME         STATUS   ROLES                  AGE   VERSION   INTERNAL-IP    EXTERNAL-IP   OS-IMAGE                KERNEL-VERSION           CONTAINER-RUNTIME
k8s-master   Ready    control-plane,master   25h   v1.20.0   192.168.4.10   <none>        CentOS Linux 7 (Core)   3.10.0-1160.el7.x86_64   docker://26.1.4
k8s-node1    Ready    <none>                 25h   v1.20.0   192.168.4.11   <none>        CentOS Linux 7 (Core)   3.10.0-1160.el7.x86_64   containerd://1.6.33
k8s-node2    Ready    <none>                 25h   v1.20.0   192.168.4.12   <none>        CentOS Linux 7 (Core)   3.10.0-1160.el7.x86_64   docker://26.1.4

更多K8S命令

查看master组件状态

kubectl get cs

查看k8s所有资源

kubectl api-resources

查看node状态

kubectl get node

查看APIserver代理的URL

kubectl cluster-info

查看集群详细信息

kubectl cluster-info dump

查看资源信息

kubectl describe pod 名称 查看事件
kubectl get pods --watch 实时查看pod
1
暂无标签
版权属于： 王忘杰
本文链接： https://90apt.com/6080
作品采用： 《 署名-非商业性使用-相同方式共享 4.0 国际 (CC BY-NC-SA 4.0) 》许可协议授权

评论

博主关闭了所有页面的评论
